Lorel: A Query Language for Semistructured Data
In the 1990s, the growing complexity of data and its structure prompted the need for more advanced techniques in managing and querying information. This led to the development of various query languages designed to handle diverse data formats, especially semistructured data. One such query language was Lorel, which emerged as an important tool for querying semistructured data, particularly XML-like structures. Lorel was introduced in 1996 by a group of researchers from Stanford University, including Serge Abiteboul, Dallan Quass, Jason McHugh, Jennifer Widom, and Janet L. Wiener.
The inception of Lorel marked a significant advancement in the domain of database management systems, specifically catering to the needs of handling data that did not conform to the rigid structures of traditional relational databases. In this article, we explore the features, functionality, and historical significance of Lorel, as well as its contributions to the development of modern data query languages.
Understanding Semistructured Data
Before diving into Lorel’s design and functionality, it’s crucial to understand the concept of semistructured data. Semistructured data is information that does not have a fixed or predefined data model. Unlike structured data, which follows a strict schema (like rows and columns in relational databases), semistructured data can have varying attributes or elements that do not necessarily follow a set structure.
For instance, data represented in formats like XML or JSON falls under the category of semistructured data. These formats allow data to be organized in a hierarchical manner, but the elements and attributes can differ across documents. Managing and querying such data requires flexible query languages that can handle varying levels of structure.
The Emergence of Lorel
The challenge of querying semistructured data was evident in the early days of XML and other similar formats. Traditional query languages, such as SQL, were designed for relational databases and were ill-suited for working with data that did not have a fixed schema. This is where Lorel came into play.
Developed at Stanford University, Lorel was a query language specifically tailored to querying semistructured data. The primary goal of Lorel was to provide a flexible yet powerful query mechanism that could easily work with XML-like documents, allowing users to retrieve data based on structure and content without being constrained by rigid schema definitions.
Lorel, in its design, adopted some of the key ideas of XPath, a widely used language for querying XML documents. However, while XPath focuses primarily on navigating XML document structures, Lorel extended these capabilities to enable more expressive querying. It allowed users to define queries that could extract complex, nested structures, which were common in semistructured data formats.
Key Features of Lorel
Lorel introduced several features that distinguished it from other query languages of its time:
-
Path Expressions: Lorel adopted path expressions similar to those found in XPath, but with more flexibility. Path expressions in Lorel allowed users to navigate through semistructured documents and retrieve specific elements or attributes, regardless of how the document was structured.
-
Wildcards: Lorel supported the use of wildcards in queries, allowing users to search for elements whose names were not known in advance or that might vary between documents. This feature was crucial for dealing with the dynamic nature of semistructured data.
-
Pattern Matching: One of Lorel’s significant strengths was its ability to perform pattern matching. It allowed users to define complex patterns to match specific data structures within semistructured documents. This was particularly useful when querying documents with varying structures.
-
Extensibility: Unlike rigid query languages, Lorel was designed to be extensible. This meant that as the structure of semistructured data evolved, new query operators or functionalities could be added to the language without breaking existing queries.
-
Support for Nested Queries: Lorel allowed for the creation of nested queries, meaning that queries could be composed of subqueries that operated on different parts of the document. This feature enabled users to extract deeply nested data efficiently.
-
User-Defined Functions: Lorel allowed users to define custom functions that could be invoked within queries. This added a layer of flexibility, allowing users to write more complex queries tailored to their specific needs.
Practical Applications of Lorel
At the time of its introduction, Lorel was primarily used for querying XML documents. XML had gained popularity as a way to represent semistructured data, and Lorel proved to be a powerful tool for extracting meaningful information from such documents. While XML was a key use case, Lorel’s extensibility meant that it could be applied to a variety of other semistructured data formats.
Some of the areas where Lorel found practical use included:
-
Data Integration: Semistructured data often comes from multiple sources, and integrating this data into a unified format can be challenging. Lorel’s flexibility made it an ideal choice for querying heterogeneous data sources and integrating them into a coherent system.
-
Web Scraping: As the web became a significant source of data in the 1990s, Lorel’s ability to handle semistructured HTML and XML documents made it useful for web scraping tasks, where users wanted to extract specific information from web pages.
-
Metadata Management: Lorel also found use in metadata management applications, where the structure of the data could vary, but users still needed to query and retrieve specific metadata elements.
Lorel vs. XPath and SQL

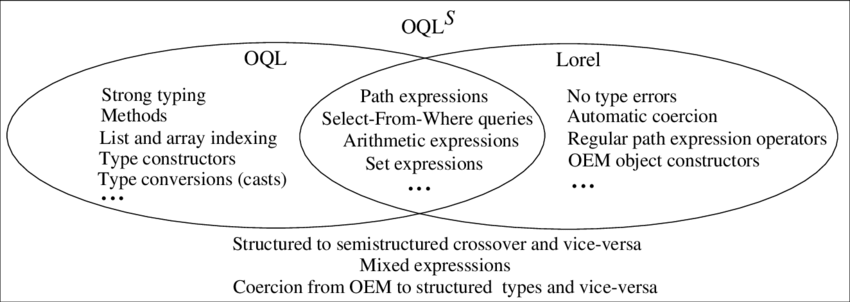

Lorel was not the first query language to deal with semistructured data. XPath, for example, had already been developed as part of the XSLT (Extensible Stylesheet Language Transformations) specification. However, while XPath focused more on navigating through XML trees and retrieving values, Lorel extended this functionality by introducing pattern matching, wildcards, and other advanced query features.
Comparing Lorel to SQL, the main difference was that SQL was designed for querying structured data within relational databases, where the schema was fixed. Lorel, on the other hand, was flexible and could deal with data that lacked a fixed schema. This made Lorel far more suitable for applications involving XML, HTML, and other forms of semistructured data, which were becoming increasingly important as the web evolved.
Evolution and Impact on Modern Query Languages
Though Lorel itself did not become as widely used as other query languages like SQL or XPath, its concepts laid the foundation for the development of modern query languages designed for semistructured data. The ideas introduced by Lorel influenced the development of other query languages, including:
-
XQuery: A query language specifically designed for querying XML documents. XQuery incorporates many of the ideas of Lorel, including path expressions and pattern matching.
-
SQL/XML: A set of extensions to SQL that provides support for querying XML data, which also draws on some of Lorel’s concepts.
-
JSONPath: A query language for JSON data that shares many similarities with Lorel, particularly in the use of path expressions and wildcards.
The development of these modern query languages can be seen as a direct continuation of the work initiated by Lorel, demonstrating its lasting influence on the field of database management and querying.
Conclusion
Lorel was an important milestone in the evolution of query languages, particularly for semistructured data. It introduced innovative features like path expressions, wildcards, and pattern matching, which allowed users to query dynamic and varied data structures with greater flexibility. While Lorel itself did not become a mainstream tool, its impact on the design of subsequent query languages, such as XQuery and JSONPath, is undeniable. The lessons learned from Lorel continue to shape the way we interact with complex data formats today, proving its relevance in the broader context of modern data management.
